This tutorial aims to guide a new user through

  • setting up parameters for a job,
  • monitoring a job's progress,
  • simple plotting of time series from a run,
  • visualisation of structures in a snapshot,
  • manipulating data.

It is advised that you read through the Getting_started before trying the tutorial, but you may skip the Libraries section if someone has set up the libraries and Makefile for you.

The following assumes that the command 'make' does not exit with an error, i.e. that the code has been downloaded (download), and that libraries have been correctly installed (Getting_started#Compiling_libraries).

Overview


Where to start - initial conditions and the main.info file

The best input initial condition, state.cdf.in is usually the output state from another run, preferably from a run with similar parameter settings. Output state files are named state0000.cdf.dat, state0001.cdf.dat, state0002.cdf.dat, and so on. Any of these could be used as a potential initial condition. If resolution parameters do not match, then they automatically interpolated or truncated to the new resolution (the resolution selected at compile time).

Download the following file from the Database: File:Re2400a1.25.tgz and extract the contents:

> tar -xvvzf Re2400a1.25.tgz
> cd Re2400a1.25/
> ls -l
-rw-rw-r-- 1      758 Jul 16  2014 main.info
-rw-rw-r-- 1  3177740 Jun 10  2013 state0010.cdf.dat

The directory Re2400a1.25/ contains an output state file state0010.cdf.dat and a main.info file. The main.info file is a record of parameter settings that were used when compiling the executable that produced the state file.

A more computationally demanding example: You may wish to start from File:Re5300.Retau180.5D.tgz and compare data with Eggels et al. (1994) JFM. To run at a reasonable pace, try running on 5-10 cores.

Set your parameters

In a terminal window, take a look at the main.info file downloaded a moment ago

> less Re2400a1.25/main.info

('less' is like 'more', but you can scroll and search (with '/'). Press 'q' to exit.) The main.info file records the parameters associated with the state file, which will be used as the initial condition.

In another terminal window, edit the parameters so that they are the same as in the given main.info file

> nano  program/parameters.f90  [OR]
> pico  program/parameters.f90  [OR]
> gedit program/parameters.f90

In the parameters.f90 file, you should ignore from where i_KL is declared onwards.

We will assume serial use (for parallel use see Getting_started#Typical_usage). The number of cores is set in parallel.h. Ensure that _Nr and _Ns are both defined to be 1 (number of cores _Np=_Nr*_Ns):

> head parallel.h
  ...
  #define _Nr 1
  #define _Ns 1
  ...

If not, edit with your favourite text editor, e.g.

> nano parallel.h

and set _Nr and _Ns as above.

Compile and setup a job directory

After setting the parameters, we need to create an executable that will run with the settings we've chosen. To compile the code with the current parameter settings

> make
> make install

If an error is produced, see the top of this page - check that libraries and Makefile are set up correctly. The second command creates the directory install/ and a new main.info file. Often its a good idea to check for any differences in parameters between jobs:

> diff install/main.info Re2400a1.25/main.info

We'll create a new job directory with an initial condition in there ready for the new run

> cp Re2400a1.25/state0010.cdf.dat install/state.cdf.in
> mkdir ~/runs/
> mv install ~/runs/job0001
> cd ~/runs/job0001
> ls -l
-rw-rw-r-- 1      949 Sep  9 08:50 main.info
-rw-rw-r-- 1  3679640 Sep  9 08:50 main.out
-rw-rw-r-- 1  3177740 Jun 10  2013 state.cdf.in

Start the run

To start the run

> nohup ./main.out > OUT 2> OUT.err &

'&' puts the job in the background. 'nohup' allows you to logout from the terminal window without 'hangup' - otherwise, a forced closure of the window could kill the job. Output and errors normally sent to the terminal window are redirected to the OUT files.

A few seconds after starting the job, press enter again. If there is a message like

'[1]+ Done nohup ./main.out ...'

then it is likely that there was an error. In that case, try

> less OUT
> less OUT.err

If there is a message about MPI libraries, and earlier you changed _Np from another value to 1, then you could try running instead with

> mpirun -np 1 ./main.out > OUT 2> OUT.err &

You might need to include a path to mpirun; search your Makefile for the mpirun command.

Monitor the run

Let the code run for a few minutes, then type

> ls -l
-rw-rw-r-- 1       18 Sep  9 08:56 HOST
-rw-rw-r-- 1      949 Sep  9 08:54 main.info
-rw-rw-r-- 1    15443 Sep  9 09:16 OUT
-rw-rw-r-- 1        0 Sep  9 08:56 OUT.err
-rw-rw-r-- 1      106 Sep  9 08:56 RUNNING
-rw-rw-r-- 1  3177740 Jun 10  2013 state.cdf.in
-rw-rw-r-- 1  3177740 Sep  9 08:56 state0000.cdf.dat
-rw-rw-r-- 1  3177740 Sep  9 09:00 state0001.cdf.dat
-rw-rw-r-- 1  3177740 Sep  9 09:04 state0002.cdf.dat
-rw-rw-r-- 1    22821 Sep  9 09:16 tim_step.dat
-rw-rw-r-- 1    32431 Sep  9 09:16 vel_energy.dat
-rw-rw-r-- 1    32431 Sep  9 09:16 vel_friction.dat
-rw-rw-r-- 1     2504 Sep  9 08:56 vel_prof0000.dat
-rw-rw-r-- 1     2504 Sep  9 09:00 vel_prof0001.dat
-rw-rw-r-- 1     2504 Sep  9 09:04 vel_prof0002.dat
-rw-rw-r-- 1     2801 Sep  9 08:56 vel_spec0000.dat
-rw-rw-r-- 1     2801 Sep  9 09:00 vel_spec0001.dat
-rw-rw-r-- 1     2801 Sep  9 09:04 vel_spec0002.dat

A number of new files should have appeared. The code outputs snapshot data, which includes a 4-digit number e.g. vel_spec0003.dat and state0012.cdf.dat, and time-series data, e.g. the energy as a function of time vel_energy.dat. Snapshot data is saved every i_save_rate1 (typically 2000) timesteps, and time-series data is saved every i_save_rate2 (typically 10) timesteps .

To see how far it has run, try

> tail OUT
 step=        4050  its=           1
 step=        4060  its=           1
 step=        4070  its=           1
 step=        4080  its=           1
 step=        4090  its=           1
 step=        4100  its=           1

Or

> tail vel_energy.dat
 0.405000000000E+02  0.237759801033E+00  0.214047103034E+00  0.176073100060E+00
 0.406000000000E+02  0.237720816537E+00  0.214012492019E+00  0.176086005951E+00
 0.407000000000E+02  0.237683667806E+00  0.213980401111E+00  0.176099745534E+00
 0.408000000000E+02  0.237648349327E+00  0.213950865483E+00  0.176114304963E+00
 0.409000000000E+02  0.237614853619E+00  0.213923919413E+00  0.176129666838E+00
 0.410000000000E+02  0.237583171343E+00  0.213899596127E+00  0.176145810402E+00

Column 1 of vel_energy.dat is the time, column 2 is the energy in the perturbation to the mean flow. Columns 3 and 4 are the energies in the axially averaged (k=0) and azimuthally averaged (m=0) components respectively. Sometimes the time-series files are buffered, i.e. no output is written until the buffer is filled. The OUT file is less likely to be buffered.

Let the code run for a few minutes, give it a chance to save a few state files. To see the simulation times when the state were saved,

> grep state OUT | less
loading state...
 saving state0000  t=  0.000000000000000E+000
 saving state0001  t=   20.0000000000003
 saving state0002  t=   40.0000000000006
Energy vs time

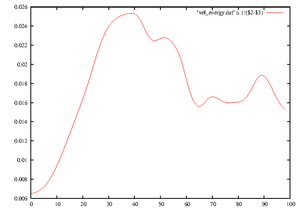

Let's plot the energy as a function of time:

 > gnuplot
  > plot 'vel_energy.dat' w l                [with lines]
  > plot 'vel_energy.dat' u 1:($2-$3) w l    [using column1 and column2-column3]

The last line here plots the energy in the axially dependent modes only (k non-zero). This quantity decays rapidly after relaminarisations, and the simulation will stop if it drops below the parameter value d_minE3d, e.g. 1d-5. Note that this parameter has no effect if it is set to e.g. -1d0.

Spectrum

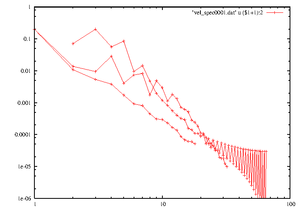

It is a good idea to keep track of the resolution. Still in gnuplot

  > set log
  > plot 'vel_spec0001.dat' u ($1+1):2 w lp    [with lines and points]
  ...
  > quit

This is a rough plot indicating the drop-off in amplitude of coefficients (the drop-off in energies will be the square of these values), defined by E_k = max_{nm} a_{nkm}, E_m = max_{nk} a_{nkm}, E_n = max_{km} a_{nkm}, where n is the index of axial resolution, k for axial and m for azimuthal.

Ideally, the lines should all drop by around 3-4 orders of magnitude or more. If there is an upward spike at the end of one of the lines, then this is usually the signature of a timestep that is too large.

Ignore the zig-zag for the tail of the line for radial resolution, focus on the upper values in the zig-zag only. It arises because a finite difference scheme is used, but data has been transformed onto a spectral basis, purely for the purpose of gauging the quality of resolution.

End the run

Type

> rm RUNNING

and press enter. This signals to the job to terminate (cleanly). Wait a few seconds then press enter again. There should be a message like, '[1]+ Done nohup ./main.out ...', to say that the job has has ended.

To see how long and how fast it was running, do

> tail OUT
 step=       10480  its=           1
 step=       10490  its=           1
 step=       10500  its=           1
RUNNING deleted !
cleanup...
 sec/step  =   0.1118212
 CPU time  =           19  mins.
 saving state0006  t=   105.100000000017
...done!

Make a util

Here we'll build a utility code to process data for visualisation.

Changing the core code in program/ should be avoided; almost any post-processing and runtime processing can be done by creating a utility instead. There are many code examples in the utils/ directory. Further information can be found on the Utilities page.

Let's return to the code,

cd <path>/openpipeflow-1.12/

In Makefile, ensure that it is set to make the prim2matlab utility,

UTIL = prim2matlab              [ommitting the .f90 extension]

In the utils/ directory there is a corresponding file prim2matlab.f90.

> make
> make install
> make util

Really, only the last command is necessary, which creates the executable prim2matlab.out. It is good practice, however, to do the previous commands to generate a main.info file to keep alongside the executable.

Visualise

Fourier coefficients are stored in the state files. (It takes much less space and is more convenient should resolution be changed.) The executable prim2matlab.out converts data and outputs it to a NetCDF file that is easily read by Matlab and Visit software packages. It can be used to create cross sections, calculate functions on a volume to create isosurfaces, etc.

Output is written to the file mat_vec.cdf:

  • contains variables A (the data) and x,y,z (grid points).
  • x has dimension x(nx).
  • A has dimension A(nx,ny,nz,Ads).
  • Ads=1 for scalar data, Ads=3 for a vector.
  • nz=1 if data is confined to a cross section.

This section is to be extended. For the moment, please see scripts that accompany the code in the directory matlab/, in particular the file matlab/Readme.txt .
